57-10-08 Wing Fold Strap

Builders Guide

57 Wings

57-10 Wing Assembly

57-10-08 Wing Fold Strap






Link To Builders Data Base for 57-10-08 Wing Fold Strap




PDF  57-10-08 Wing Fold Strap
PDF 57-10-09 Wing Fold Fitting Installation

57-10-09 Picture Data Base

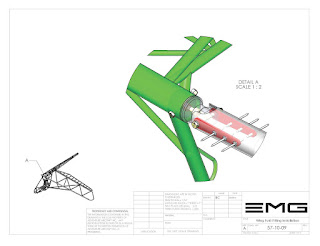

 The 57-10-08 Wing Fold Strap is shown in context in red.




The wing fold strap is designed to be used in conjunction with 57-10-09 wing fold fitting. And can be used with or without the wing fold system incorporated into the wing design.

There is a total of 4 fittings for the entire aircraft. 2 for each forward main spar.



Although these pictures are shown slightly out of context is are being installed after the wing fabric covering is already installed the process is basically the same. If the wing spar's are already pre-drilled the installation is relatively straight forward. Simply insert the wing fold strap to the inside of the spar and pull (3) 3/16 inch aluminum pop rivets to hold in place. If this is a retrofit than place one of the wing straps on the outside of the spar to use as a drilling jig to properly position the holes for the straps installation. in this picture here we see a 1/4 inch bolt holding the strap in position on the outside of the spar ensuring that the fitting is parallel with the spar and then drilling the remaining holes with a #10 or a 3/16 drillbit.



The rivets required to hold the strap in place are a 3/16 inch diameter times .5 inch length. if this is a retrofit you may find that it's necessary to use AN3 bolts on the inside fitting as the accessibility for a pop rivet gun is somewhat limited.



In this picture here you can see the very last hole has the 3/16 rivet installed through the fitting getting ready to be pulled. Minimum rivet length is  1/2 inch longer is acceptable but unnecessary.




In this picture the focus is on the bolt end of the fitting showing the fit of the strap contouring to the inside of the main wing spar center reinforcing  tube. Once the strap has been tightened securely to the spar the natural tendency of the fitting is to self align with the internal contour of the tube. this makes the process of alignment a little bit easier. If this is a retrofit you will have to drill from the forward drill hole all the way through the adjacent strap and spar tube. In this case simply install both strap simultaneously as you drill through the tube thus providing proper alignment of the bolt holes horizontally as well as vertically



In this picture here you can see the wing fold fitting 57-10-09  in place as it will be installed on the aircraft. This is simply a spare fitting that we used to show the context of the attachment.



The wing fold fittings designed to be installed between the 2 wing fold straps using and AN960L (thin washer) this acts as a bearing support which allows pressure to be applied with the AN4  through bolt.


Keep in mind that these pictures that were showing here do not show the slot cut in the main wing spar that allows the wing to fold 90°. And the inboard rib is also position slightly different than on the production aircraft.
