Manufacturing 9" Radius Tube Bending Dies

Bending Die Design

As most of you know that have been following this blog's progress. We have been in a transition period trying to retool as a result of Quicksilver Aeronautics no longer being able to any of our parts. One of the areas that we were outsourcing was the bending of the large diameter tubes that are used for the fuselage keel tube as well as the wing tips on the EMG-6. Several months ago we purchased a  production tube bending machine which didn't come with any tooling. Much to our shock, we found that the tooling costs are outrageous for the dies and mandrels. To purchase a die set for the 9 inch radius needed for the keel and the wingtip. The cost was going to be $2000. In identifying the requirements for bending these 1 inch diameter 6061 T6 aluminum tubes. We realized that on a large radius like this. We could easily manufacturer our own bending die. We designed the die to fit our machine and have begun the process of building the individual segments that we will assemble to make the overall 9 inch radius die. We only need 180° of bend capability. So this is what we ended up with for the design.

8-20-2015

Machining Each Segment

Are design assembly is made up of 5 individual dies that are tied together. Either with welding or with plates. Initially we will probably plate everything together so that we can have some adjustment and then later on if necessary, we will weld the individual segments together to form a more rigid subassembly.

Keystone Block

The Keystone is the main portion of the bending die that will transfer the loads from the machine into the die itself. This is designed using a 1 1/2 inch thick x 3 inch x 12 inch long piece of 6061 T6 aluminum. We elected to use aluminum primarily because of the cost and the lightweight nature compared to steel on this larger piece of tooling. It would be nearly impossible to manage if it is manufactured from steel. We first design the part in SolidWorks then create our tool-path in SolidCam and then machine out the part on the milling machine. On this part it was pretty simple. It only required re-positioning the part one  time for two separate sets of Coordinates.


























Main Bending Dies Segment

In order to facilitate simple construction. We next manufactured to identical bending segments that will fit on either side of the Keystone which will do the majority of the bending.
We 1st design. The part in Solid Works and then lay out the tool-path in Solid Cam. In this picture here we see the finish toolpath represented an orange stepping over every .010 of an inch. Creating a smooth contour.









In this picture here we can see the milling machine working the finish path on the 1st segment. This will also require re-positioning the component for the additional machining after this Tool-path has been completed.


























































A sample piece of tube is been placed next to the radius of the bending dies. We will keep the radius about .008" Smaller than the tube to assist in maintaining tube concentricity during the bending process.










August 21, 2015

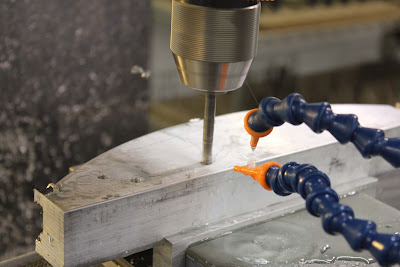

Once the basic profile of the bending block has been machined we also machine in index marks which will be used for the re-positioning of the part in its new orientation.

In this picture here we see the bending block re-positioned onto its side and an additional reference mark made down the center of the bending block which can be used later for additional references.











The side profile is then cut to the exact dimension for interfacing with the key block and the other end segments










.


Next the holes will be drilled into the block which will be used to tied together all of the individual components with the interfacing plates.










The primary segment shown as it fits with the key block.














The end to final segments are required to make up the complete assembly. These will be used to tie both ends to the the key block.
In this picture here we see the tool-path for both the rough cutting and the finished cut.











The 2 in segments are different from each other and have separate tool-paths for each one of them. The beginning segment has a 2.5 inch long, flat section that is used to clamp the tube to the bending die.











Cutting the attachment plates out of .25 inch aluminum

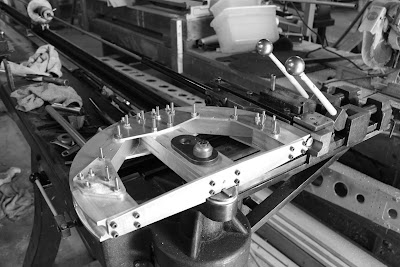

All of the segments completed and positioned in place














All of the plates are now manufactured.













8-22-2015



The last piece to manufacture is the cross tie bar which will support the bending dies during the bending process.












All of the pieces now complete and the individual pieces bolted together.

















All of the radius die portions fit within a few thousandths of each other. Next step is simply to give this the test run on the Bending machine









8-23-2015


Upon initial installation in the bending machine. We found that the radius die, did not line up perfectly with the outer die clamping blocks and slider block.












Next we had to manufacture spacers out of Corian to use to jack up the dies, so they were perfectly parallel.
In this picture here we are pretty cutting the height so that the final part will come out to an exact thickness.











We ended up making 3 different spacers before we got one that was the perfect height. In this picture here you can see one of the spacers that will go underneath the 9 inch radius die.












With the spacers installed and the test piece of 1 inch x .058 inch 6061 T6 positioned, everything lines up perfectly. It took several hours to manufacture some special holding fixtures for some of the slider dies.

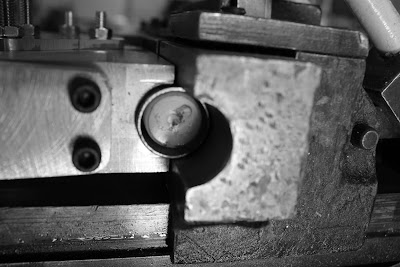

A picture of the 1 inch diameter tube in the 9 inch radius die with the clamp block moved out of the way so that we can see the orientation of the slider dies. The slider dies moves with the tube until it is about 1 inch past the bend axes.










With this large radius die. We were able to manufacture a nylon mandrel that extends about 2 inches past the bend radius. This nylon remains in this position during the bending process but is pliable enough to conform to the tube inside diameter around the perimeter of the die during the bending process. This maintains the tubes concentricity and provides for a smoother bend by preventing the tube from collapsing during the bending process.






In this picture  here we have bent a sample piece of tube 120° and then remove the clamping blocks preparing to remove the tube from the bending die









.


A look at the bottom side of the bending dies with the counter sunk screws to provide clearance from the base of the machine. In this picture here you can see the spacer underneath the keystone fitting.









With the tube removed from the vending machine you can now see all of the components. The nylon plug that slides down the length of the tube on the inside  which is held at the other end of an 8 foot long rod that attaches into a indexing collet.









The machine has automatic bending stops built into the machine as well as 2 different graduated bending indicators. This one is on the front of the machine which is easily readable during the bending process













With the sample tube positioned next to the nose keel tube we see that the bend radius is nearly perfect.















Now that we have verified the accuracy of the bending die. We can begin the setup process to duplicate components for mass production. In this picture here you can see that we didn't bend the full extent of the nose keel but the radius is still showing the correct radius.









We will be adding more content as we continue the process of manufacturing the bending dies.
